Press Section ALLIMAND 2015 - width 2200 mm

PRESS SECTION

made by Allimand year 2015

felt width: 2200mm

Design speed: 300 m/min

Base weight: 15-90 g/m²

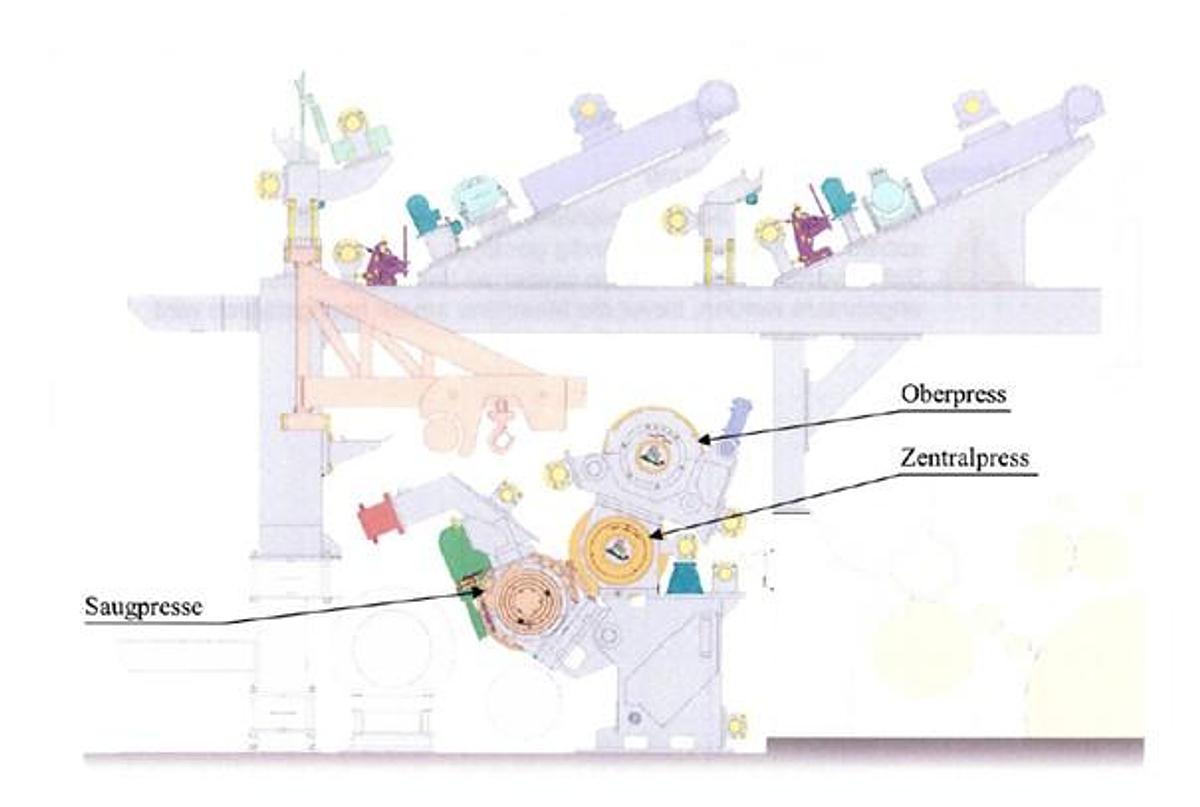

3 presses: suction press, central press, top press

min / max working length of the pickup felt ring: 10800 mm / 11800 mm

min / max Working length of the second press felt ring: 8750 mm / 9500 mm

max. Design pressure: suction press = 80 kN/m; central press = 100 kN/m; top press = 120 kN/m

1 forward drive roll cantilevered together with suction coach roll to make pick-up possible

1 compact press (Allimand, 2 nips) with pick-up suction roll, stonite center roll and 2. Nip top roll, grooved and blind drilled, 1st nip 80 kN, 2nd nip 100 kN linear pressure

3rd press 120 kN with bottom felt

1 hydraulic unit

Wet presses felts 1.+2. Press 1765 g/m² , 3. Press 1450 g/m²

3 vacuum suction boxes

3 bubble suction boxes

3 low pressure shower pipes 5 bar

3 high-pressure shower pipes 22 bar

Dry content after 3rd Press ( before drying section) approx. 35.5%
