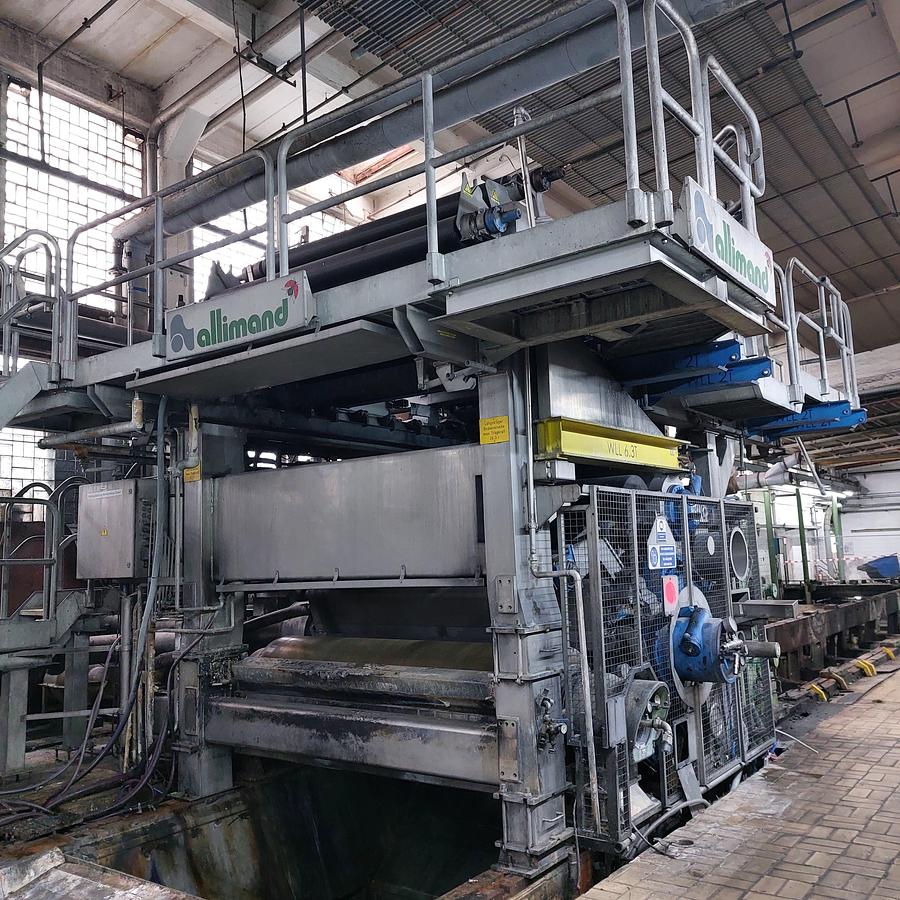

Press Section ALLIMAND 2015

PRESS SECTION ALLIMAND 2015

1 forward drive roll cantilevered together with suction coach roll to make pick-up possible

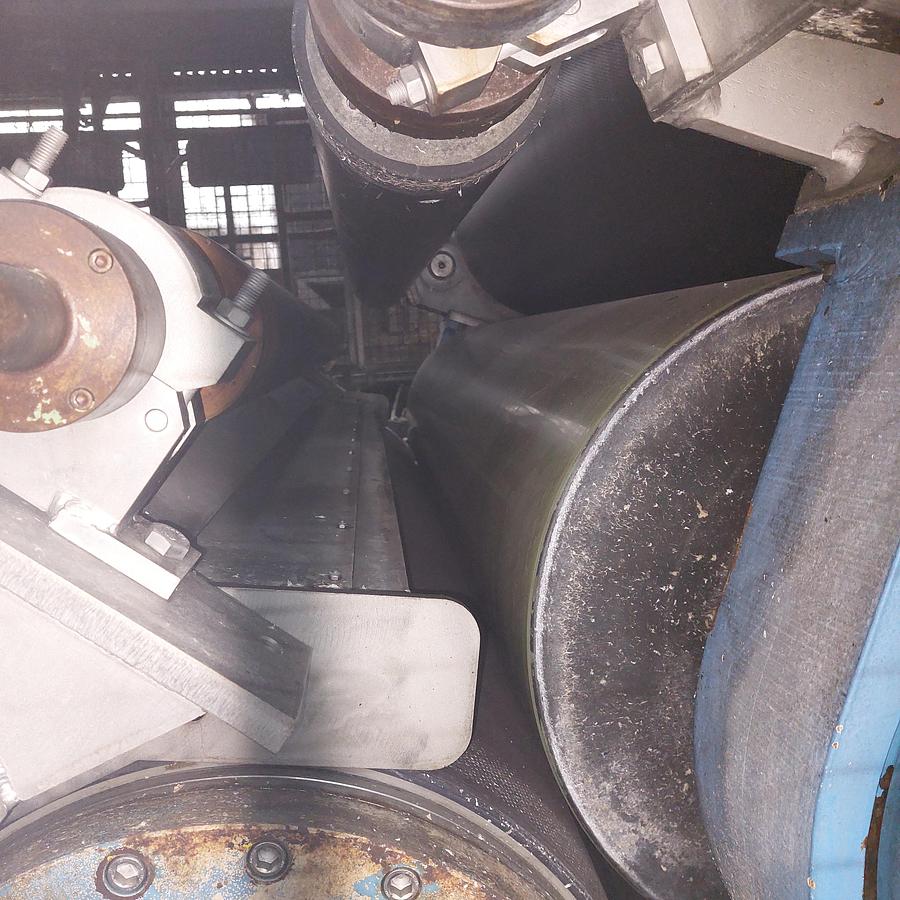

1 compact press (Allimand, 2 nips) with pick-up suction roll, stonite center roll and 2. Nip top roll, grooved and blind drilled, 1st nip 80 kN, 2nd nip 100 kN linear pressure

3rd press 120 kN with bottom felt

1 hydraulic unit

Wet presses felts 1.+2. Press 1765 g/m² , 3. Press 1450 g/m²

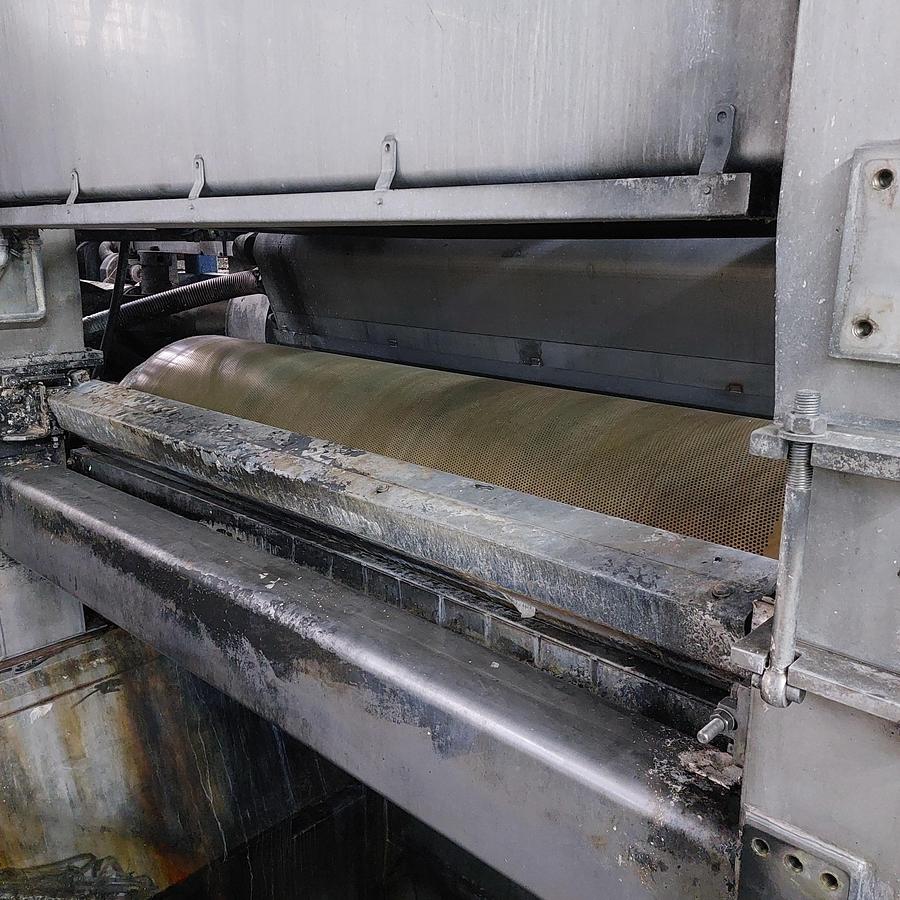

3 vacuum suction boxes

3 bubble suction boxes

3 low pressure shower pipes 5 bar

3 high-pressure shower pipes 22 bar

Dry content after 3rd Press ( before drying section) approx. 35.5%
