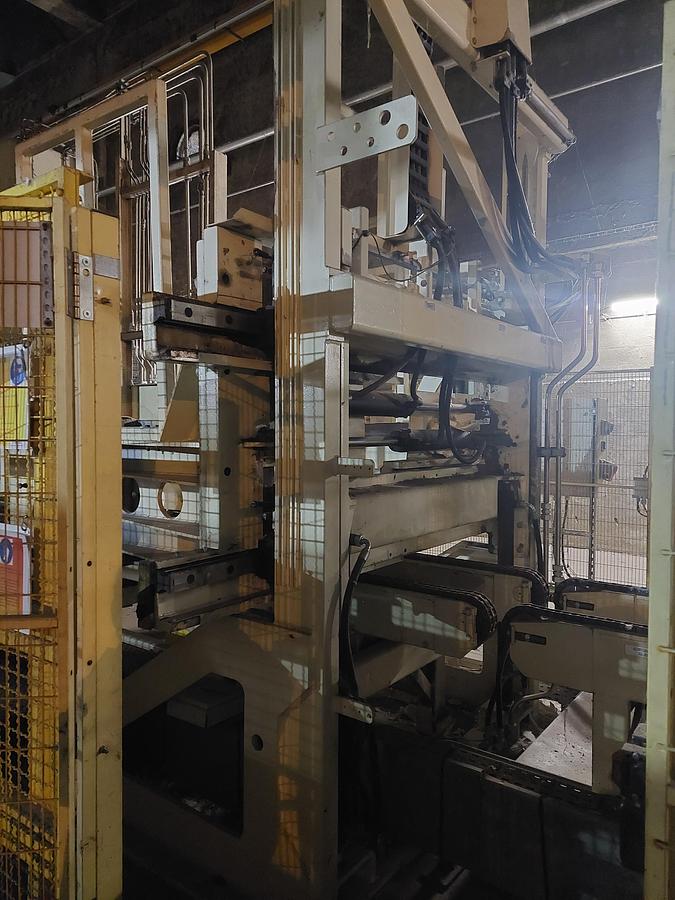

Pulp Bale Handling System - FMW

Manufacture: FMW

Model: Virgin Pulp Dewiring Line + Conveyor

Year of make: 2008

Capacity: 150 bales/hour

Material:

• 2 stack pulp units:
• 2 bales horizontal
• 4 bales vertical

Moisture: 3-10%

Stacks:

• Width: 700 – 1000 mm
• Height: 1200 – 2100 mm
• Length: 1200 – 1800mm

Wiring:

• 6-8 separate wires
• Wire diameter: 2-3,8 mm

Unit weight: 2000 kg

Bale weight: 250 kg

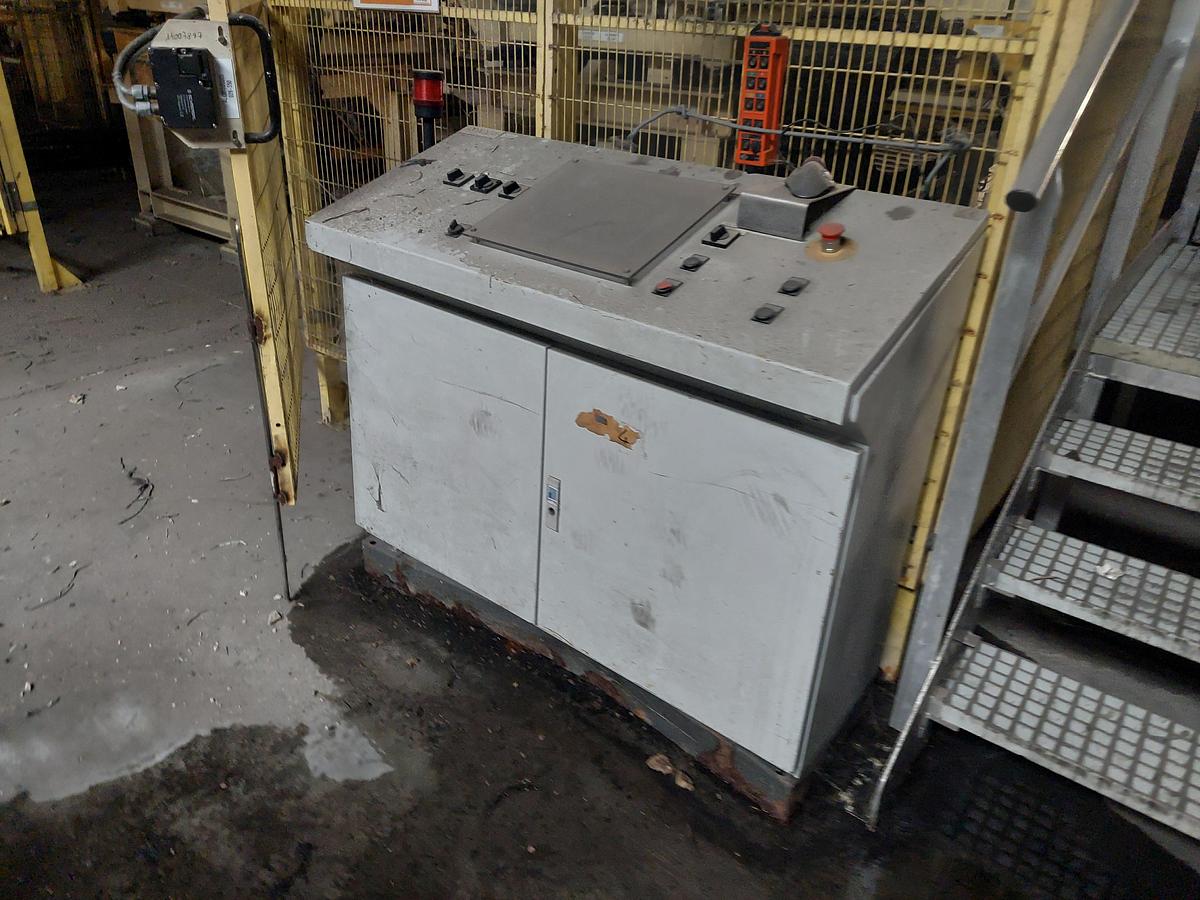

Drive: Siemens S7

Equipped with:

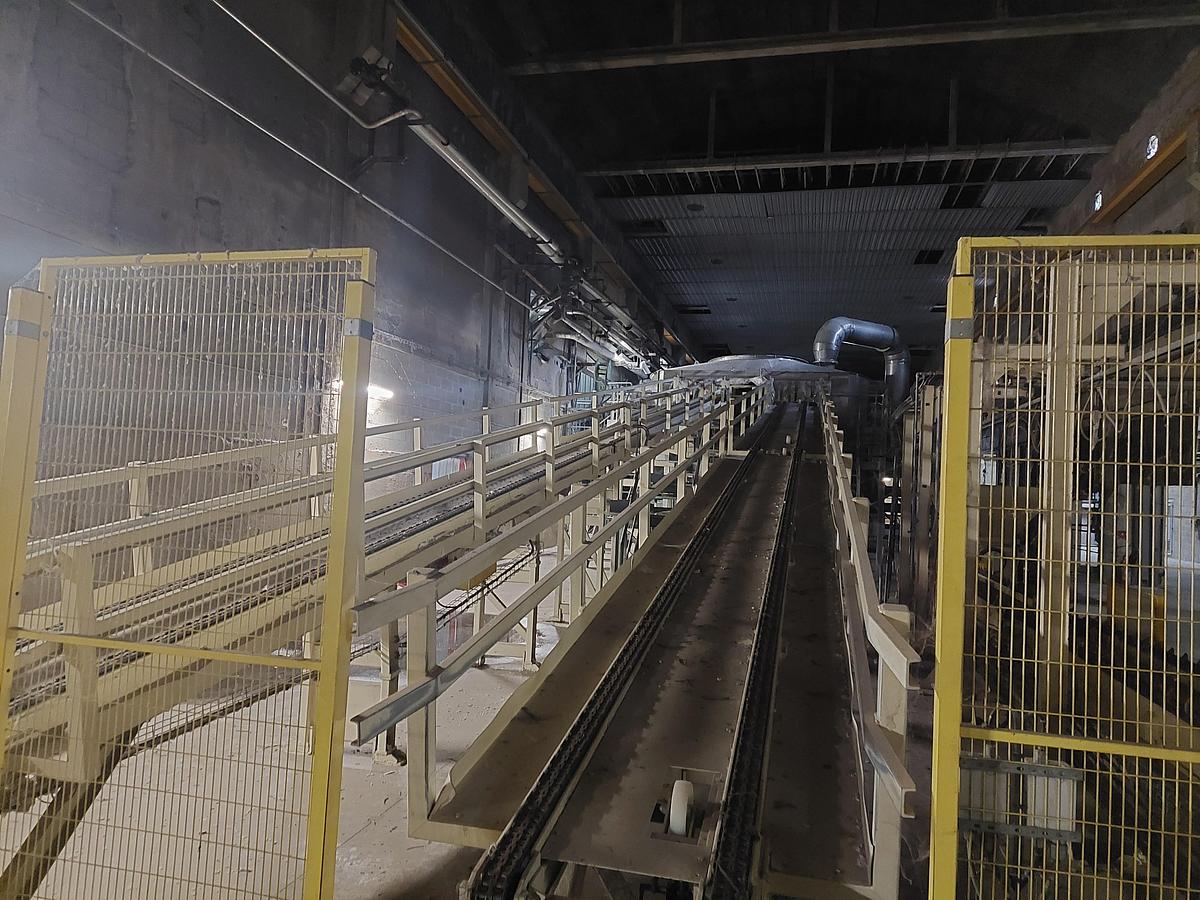

• Receiving conveyor
• 3 x Unit storage conveyor

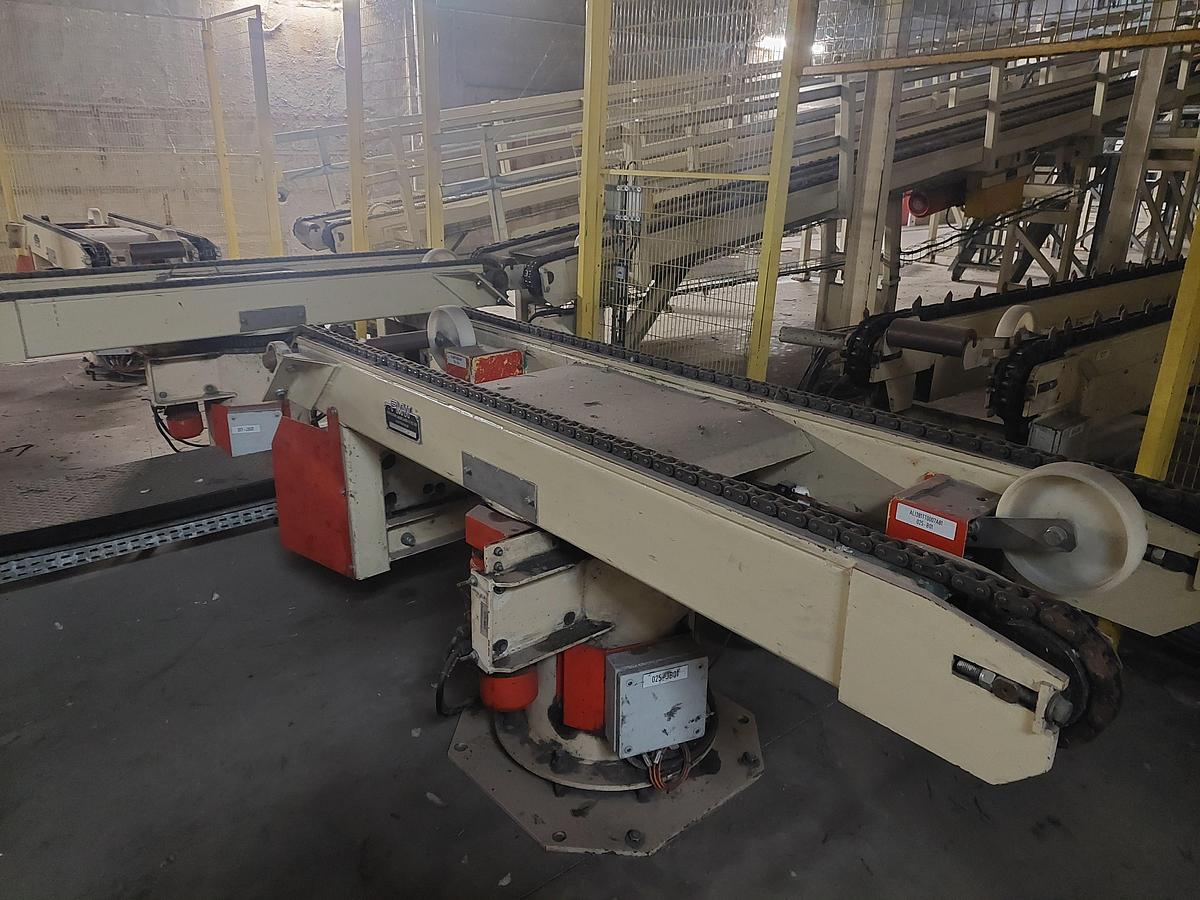

• 4 x Unit rotating conveyor

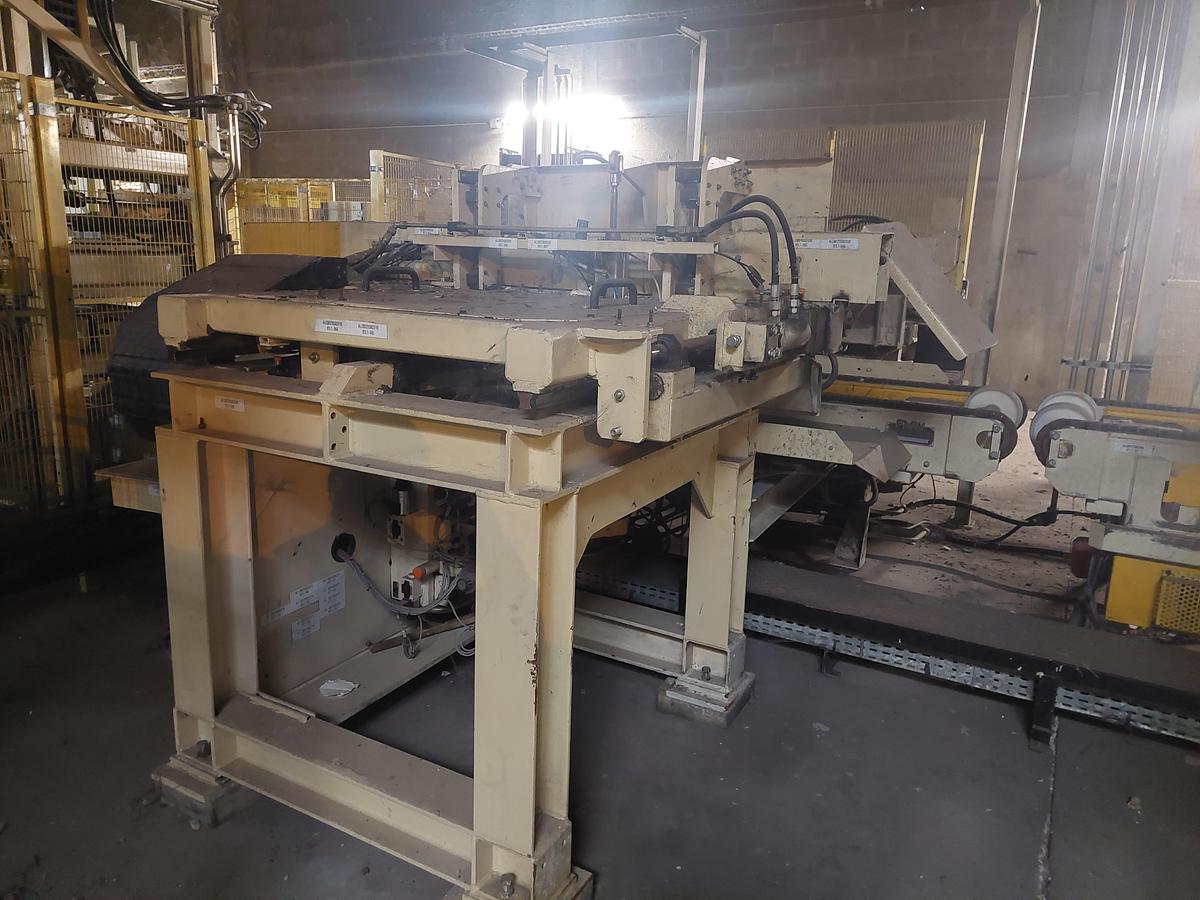

• Automatic unit dewiring station

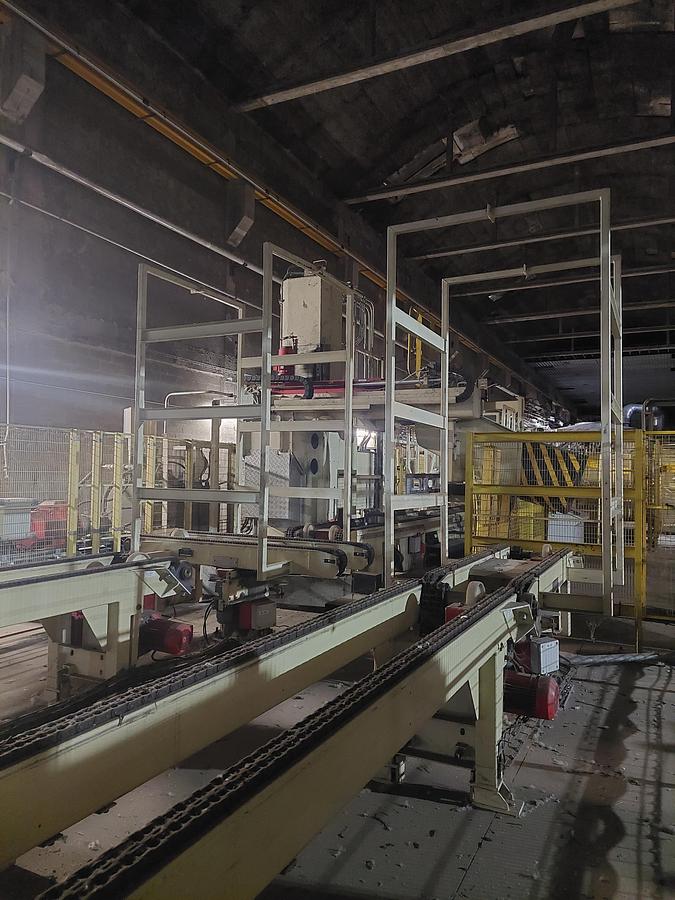

• 4 x Chain conveyor
• Automatic unit destacker
• Intermediate conveyor
• 2 x Automatic single bale dewiring unit

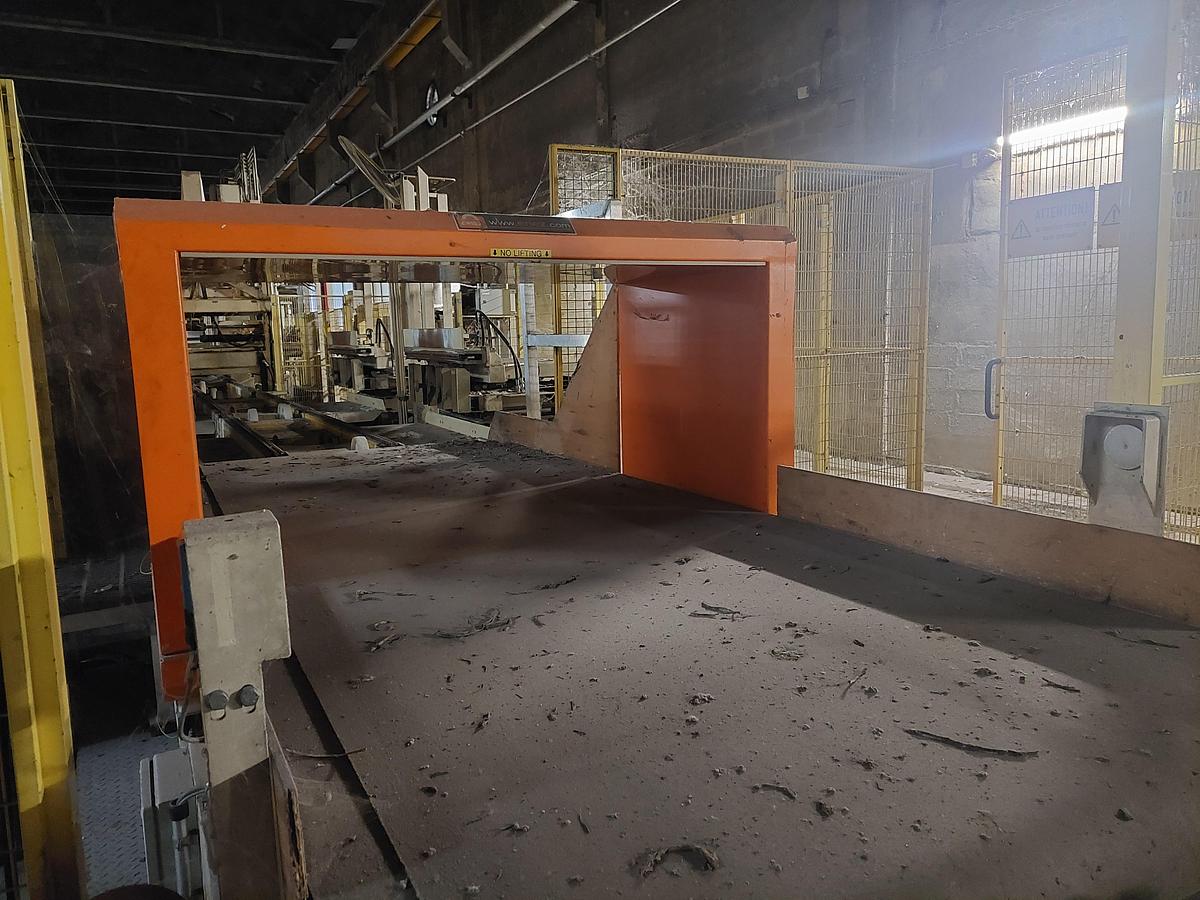

• Metal detector conveyor
• 3 x Bale rotating conveyor
• 4 x Pulper Feed conveyor
• 2 x Failure queue conveyor
• Wire coiler

Location: Europe
