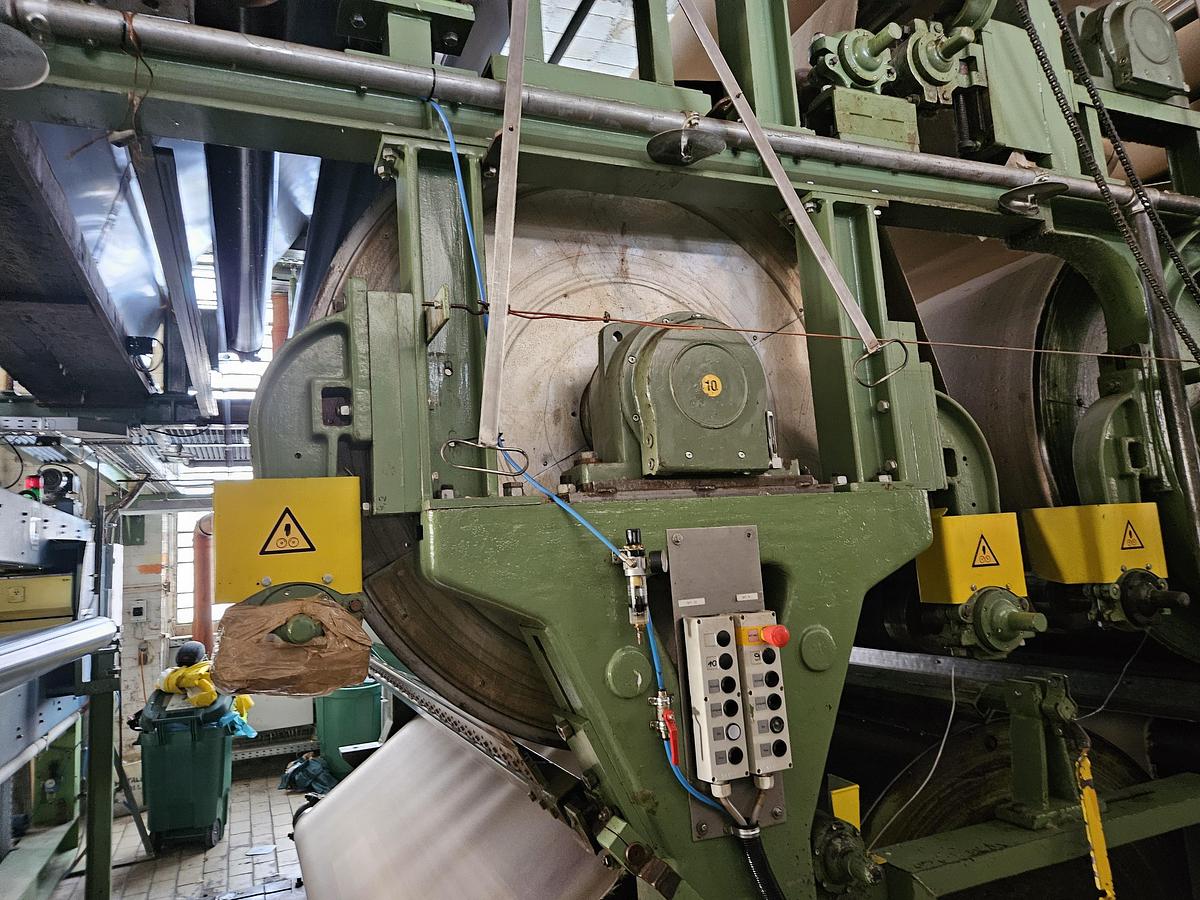

Paper Production Plant for medium and high-grade papers

Manufacturer Voith

Year of make 1958

Major rebuilds: 2010: Headbox, Suction roller, Pick-up reception 1. Press, Improvement of the screen section, Extension of the drying group, New drives

Working width at Pope reel: 2160 mm

Working width after Calander: 2120 mm

Operating speed max.: 60-130 m/ min

Capacity: 1250 jato

Paper grades: Medium and high-grade capacitor papers:

- Calendered capacitor paper

- Electrolytic Paper- Kraft pulp based

- Electrolytic Paper Long Fibre- Kraft

- Cable- Transformer- and Insulating Paper

Basis weight range: 8,2 – 55 g/m²

Equipped with

• Stock preparation and approach flow
• PM from Headbox to Pope Reeler
• Vacuum system
• Flotation Unit, Krofta
• Auxiliary Units
• Slitter Rewinder, Goebel

Length of Paper machine: 36 m

Length of the complete system: 70 m

Spare parts: Included as far as available

Technical documentation: Included as far as available

Condition: Machine stopped in January 2025, in very good condition

Location: West Germany
